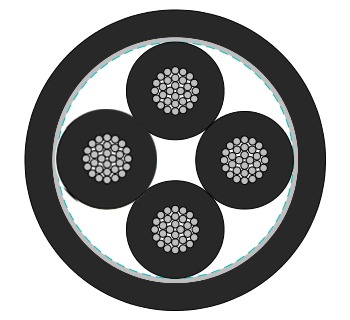

Siechem BS EN 50264-3-2 Multi Core, 300/500 V AC, EBXL 90°C Rolling Stock Cable

  • For mechanically protected installation in Rail / Bus and other transport vehicles.
  • Cables are used in Driver desks, Control panels, wiring harness in inside/outside
    the moving vehicles.

  • Conductor : Finely Stranded Annealed Electro Tinned Copper, Class 5.
  • Insulation : EBXL – EI 109
  • Separator : Polyester Tape
  • Outer Sheath : EBXL – EM 104
  • Colour : Black or as per customer order

  • Temperature Range : -40°C to +90°C.
  • Rated Voltage : 300/500V AC
  • Specification : BS EN 50264-3-2 : 2008, Table 1
  • Hazard Level Classification as per EN 45545-2, HL3
  • Conductor : BS EN 60228, Class 5
    In addition to BS EN 50264 spec, cables also meet fire performance tests as per
    UNI CEI 11170-3
    DIN 5510-2
    NF F 16-101
    CEN /TS 45545

  • Excellent resistance to high and low temperature
  • Outstanding Flame retardant
  • Halogen free
  • Thin walled with excellent flexibility
  • Resistance to oil, fuel, ozone and weathering.
  • Easy to strip
  • Low smoke density
  • Soldering iron resistant
  • Electron Beam Cross Linked.
  • Resistance to corona effect.

Part Number No. of cores x
Cross Section
(Nos) x (Sq.mm)
Conductor
Diameter
(mm)
Max. Conductor
Resistance
at 20°C (Ω/km)
Insulation
Thickness
(mm) (Nom)
Max. Core Diameter
(mm)
 Outer sheath
Thickness (mm) (Nom)
Outer Diameter
(mm)
Cable Weight
(Kg/Km) approx.
(Min) (Max)
5861002 2 X 1 1.25 20.0 0.4 2.4 0.6 5.3 6.2 57
5861004 4 X 1 1.25 20.0 0.4 2.4 0.6 6.1 7.2 84
5861007 7 X 1 1.25 20.0 0.4 2.4 0.7 7.5 8.7 130
5861009 9 X 1 1.25 20.0 0.4 2.4 0.7 9.1 10.6 170
5861012 12 X 1 1.25 20.0 0.4 2.4 0.7 9.8 11.5 205
5861019 19 X 1 1.25 20.0 0.4 2.4 0.8 11.7 13.7 315
5861024 24 X 1 1.25 20.0 0.4 2.4 1.0 14.1 16.5 410
5861032 32 X 1 1.25 20.0 0.4 2.4 1.0 15.5 18.2 525
5861037 37 X 1 1.25 20.0 0.4 2.4 1.0 16.1 18.9 595
5861040 40 X 1 1.25 20.0 0.4 2.4 1.0 16.7 19.6 640
5861304 4 X 1.5 1.5 13.7 0.5 2.9 0.7 7.3 8.6 120
5861307 7 X 1.5 1.5 13.7 0.5 2.9 0.7 8.7 10.2 180
5861309 9 X 1.5 1.5 13.7 0.5 2.9 0.8 10.9 12.7 245
5861312 12 X 1.5 1.5 13.7 0.5 2.9 0.8 11.8 13.8 320
5861319 19 X 1.5 1.5 13.7 0.5 2.9 1.0 14.2 16.6 465
5861324 24 X1.5 1.5 13.7 0.5 2.9 1.0 16.6 19.5 585
5861332 32 X1.5 1.5 13.7 0.5 2.9 1.2 18.7 21.9 770
5861337 37 X 1.5 1.5 13.7 0.5 2.9 1.2 19.5 22.8 875
5861604 4 X 2.5 1.95 8.21 0.5 3.4 0.7 8.3 9.8 170
5861607 7 X 2.5 1.95 8.21 0.5 3.4 0.8 10.2 11.9 275
5861609 9 X 2.5 1.95 8.21 0.5 3.4 1.0 12.9 15.1 385
5861612 12 X 2.5 1.95 8.21 0.5 3.4 1.0 13.9 16.3 480
5861619 19 X 2.5 1.95 8.21 0.5 3.4 1.0 16.3 19.1 710
5861624 24 X 2.5 1.95 8.21 0.5 3.4 1.2 19.6 22.9 945

Other length as per Customer order.
