Siechem BS EN 50306-4 7E Multi Pair, Screened, 300V AC, 450V DC, EBXL 90°C Rolling Stock Cable

  • For mechanically exposed installation in Rail / Bus and other transport vehicles.
  • Cables are used in Driver desks, Control panels, wiring harness in inside/outside
    the moving vehicles.

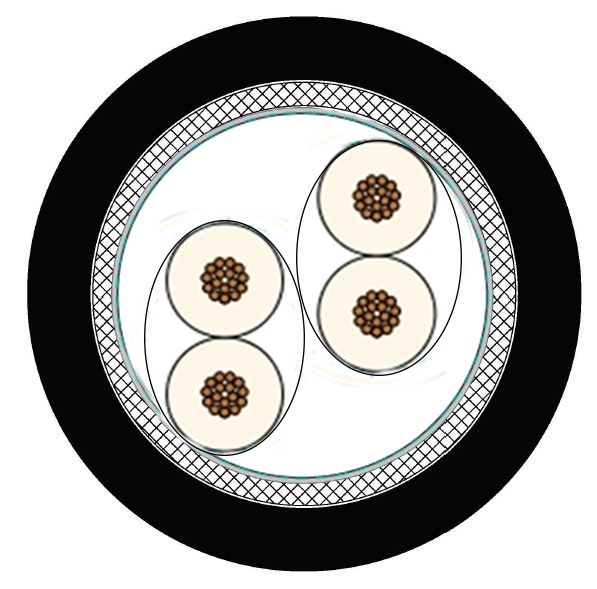

  • Conductor : Finely Stranded Annealed Electro Tinned Copper, (Unilay*)
  • Insulation : Cross Linked Ethylene Copolymer
  • Pair : Cores twisted
  • General Screen : i) Tinned Copper Braid                                                                                                       ii) Wire dia ≥ 0.10 mm
    iii) Filling Factor ≥ 0.55
  • Separator Tape
  • Outersheath : EBXL- EM 104
  • Black colour or as per customer order.

  • Temperature Range : -40°C to +90°C.
  • Rated Voltage : 300V AC 450V DC
  • Specification : BS EN 50306-4 : 2020, Table 7, Class E
  • Hazard Level Classification as per EN 45545-2, HL3
  • Screened and Sheathed Pairs : EN 50306-3 : 2020
  • Conductor : BS EN 50306-2 : 2020
    In addition to BS EN 50306 spec, cables also meet fire performance tests as per
    UNI CEI 11170-3
    DIN 5510-2
    NF F 16-101
    CEN /TS 45545

  • Excellent resistance to high and low temperature
  • Outstanding Flame retardant
  • Halogen free
  • Thin walled with excellent flexibility
  • Resistance to oil, fuel, ozone and weathering.
  • Easy to strip
  • Low smoke density
  • Soldering iron resistant
  • Electron Beam Cross Linked.
  • Resistance to corona effect.

Part Number No. of cores x Cross Section (Nos) x (Sq.mm) Conductor Construction No.of Strands x Strand dia (Nos x mm) Max. Conductor Resistance at 20°C (Ω/km) Nom. Thickness of Overall Sheath (mm) Outer Diameter (mm) Cable Weight (Kg/Km) approx.
(Min) (Max)
RA5380602P 2 X 2 X 0.5 19 X 0.18 40.1 1.0 7.1 8.9 84
RA5380603P 3 X 2 X 0.5 19 X 0.18 40.1 1.0 7.5 9.1 100
RA5380604P 4 X 2 X 0.5 19 X 0.18 40.1 1.0 8.3 9.7 125
RA5380607P 7 X 2 X 0.5 19 X 0.18 40.1 1.0 9.6 11.6 180
RA5380802P 2 X 2 X 0.75 37 X 0.16 26.7 1.0 7.6 10.0 105
RA5380803P 3 X 2 X 0.75 37 X 0.16 26.7 1.0 8.2 10.2 125
RA5380804P 4 X 2 X 0.75 37 X 0.16 26.7 1.0 9.5 10.8 155
RA5380807P 7 X 2 X 0.75 37 X 0.16 26.7 1.0 11.4 12.8 235
RA5381002P 2 X 2 X 1 37 X 0.18 20.0 1.0 8.3 10.5 120
RA5381003P 3 X 2 X 1 37 X 0.18 20.0 1.0 8.8 10.7 145
RA5381004P 4 X 2 X 1 37 X 0.18 20.0 1.0 9.6 11.3 180
RA5381007P 7 X 2 X 1 37 X 0.18 20.0 1.0 11.6 13.4 270
RA5381302P 2 X 2 X 1.5 37 X 0.23 13.7 1.0 10.3 12.2 170
RA5381303P 3 X 2 X 1.5 37 X 0.23 13.7 1.0 11.0 12.4 210
RA5381304P 4 X 2 X 1.5 37 X 0.23 13.7 1.0 12.1 13.1 255
RA5381307P 7 X 2 X 1.5 37 X 0.23 13.7 1.0 14.5 16.3 415
C2050606P 6 X 2 X 0.5 19 X 0.18 40.1 1.0 10.4 11.2 160

Other length as per Customer order.
