Application

  • ower transmission line inspection.
  • Substation monitoring & thermal scanning.
  • Oil & gas pipeline inspection.
  • Refinery and chemical plant surveillance.
  • Construction site progress monitoring.
  • High-rise building inspection.
  • Factory & warehouse surveillance.
  • Offshore platform inspection.
  • Police & Defense operation.
  • Disaster Management & Emergency Response.

Product Construction

  • Conductor : Silver-plated copper conductor
  • Insulation : Fluoropolymer.
  • Insulation Colour :
    Data Pair : Blue / White
    Power Pair : Grey / White
    Fiber Optic : Brown
  • Optical fiber.
  • Optical fiber insulation : ePTFE buffer
  • Optical fiber jacket : Fluoropolymer
  • Barrier : Weather-proof barrier
  • Outer sheath : Fluoropolymer fiber braid – Black.

Technical Data

  • Temperature range :
    Data Pair : -60°C to +200°C
    Power Pair : -60°C to +200°C
    Fiber optic : -60°C to +85°C
  • Operating Voltage (Vrms) :
    Data Pair : 250
    Power Pair : 600
  • Testing Voltage (Vrms) :
    Data Pair : 1500
    Power Pair : 1500
  • Maximum optical loss at 1310 nm dB/Km :
    Fiber optic : 0.35
  • Maximum optical loss at 1550 nm dB/Km :
    Fiber optic : 0.20
  • Coating Type :
    Fiber optic : High-temperature Acrylate
  • Tensile Strength N (lb) :
    16 AWG : 1538 (345)
    20 AWG : 1092 (245)
    24 AWG : 910 (204)
  • Scrape Abrasion CYcles, 500g (1.1lb) :
    SAE AS4373 : >36,000
  • Fluid Immersion / Weight Stability is pass, % Absorption (SAE AS4373):
    >1 (Salt Water, Diesel)
    >2.5 (Hydraulic)

Features

  • High tensile strength.
  • Continuous power transmission capability.
  • Hybrid design.
  • High voltage DC insulation.
  • Low diameter & compact design.
  • UV resistant for outdoor use.
  • Oil & Chemical resistant sheath.
  • Low signal loss for data transmission.
  • Weather Proof.
  • Ultra Light weight design.

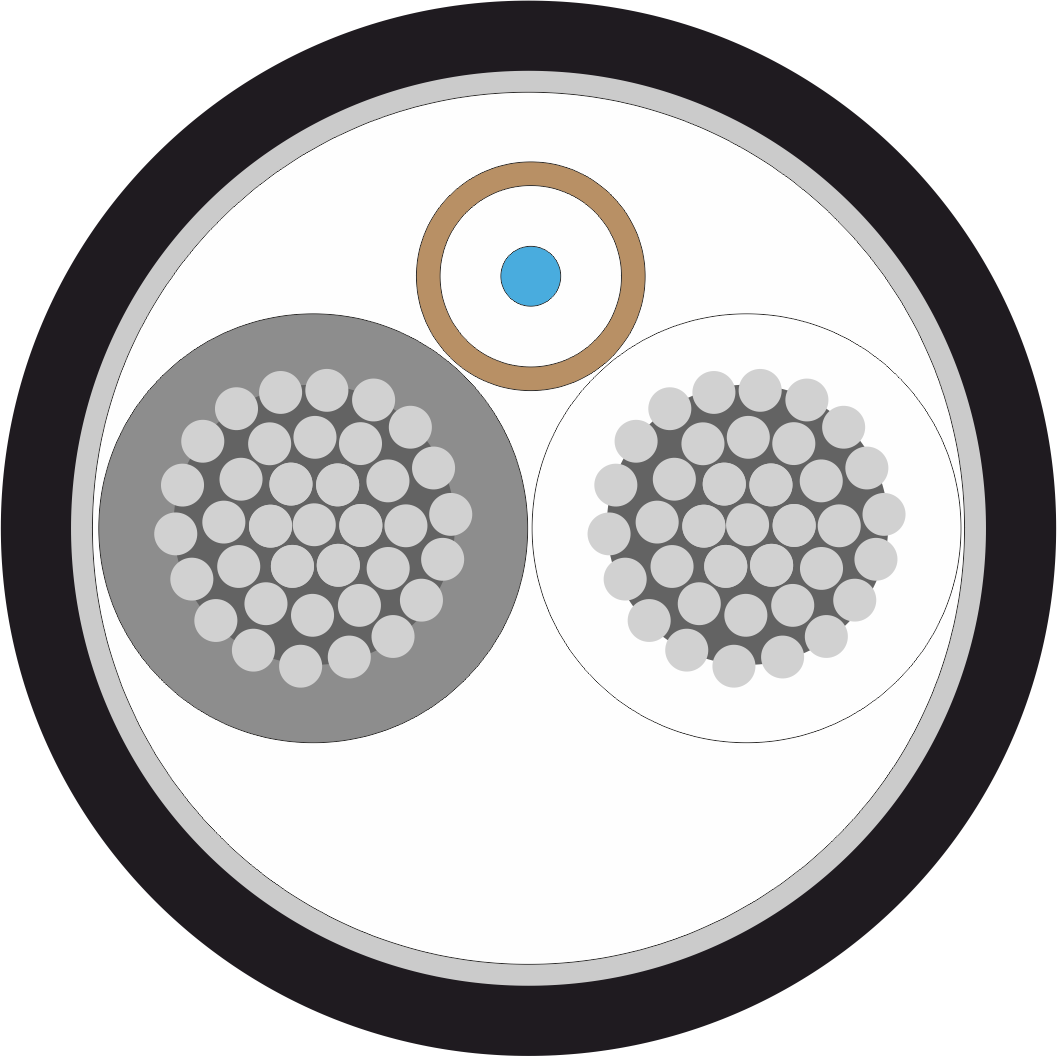

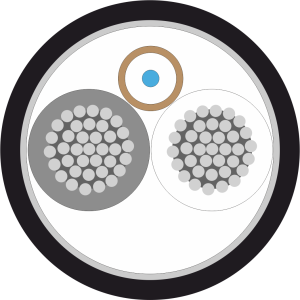

  • Size : 16 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 29 AWG / 0.286 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Fiber : 1 Single Mode, 900 micron
  • Nominal Outer Diameter : 3.8 mm / 0.148 in.
  • Min. Bending Radius : 38mm / 1.48 in.
  • Nominal weight : 33 Kg/Km
  • Max.Conductor DC Resistance : 4.5 Ω/1000ft.
  • Size : 20 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 32 AWG / 0.20 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Fiber : 1 Single Mode, 900 micron
  • Nominal Outer Diameter : 2.9 mm / 0.117 in.
  • Min. Bending Radius : 38mm / 1.17 in.
  • Nominal weight : 18 Kg/Km
  • Max.Conductor DC Resistance : 9.1 Ω/1000ft.
  • Size : 24 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 36 AWG / 0.127 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Fiber : 1 Single Mode, 900 micron
  • Nominal Outer Diameter : 2.3 mm / 0.092 in.
  • Min. Bending Radius : 23 mm / 0.92 in.
  • Nominal weight : 10.3 Kg/Km
  • Max.Conductor DC Resistance : 23.6 Ω/1000ft.

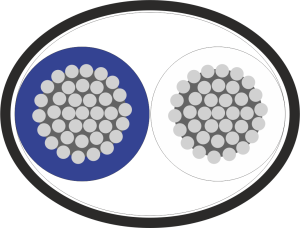

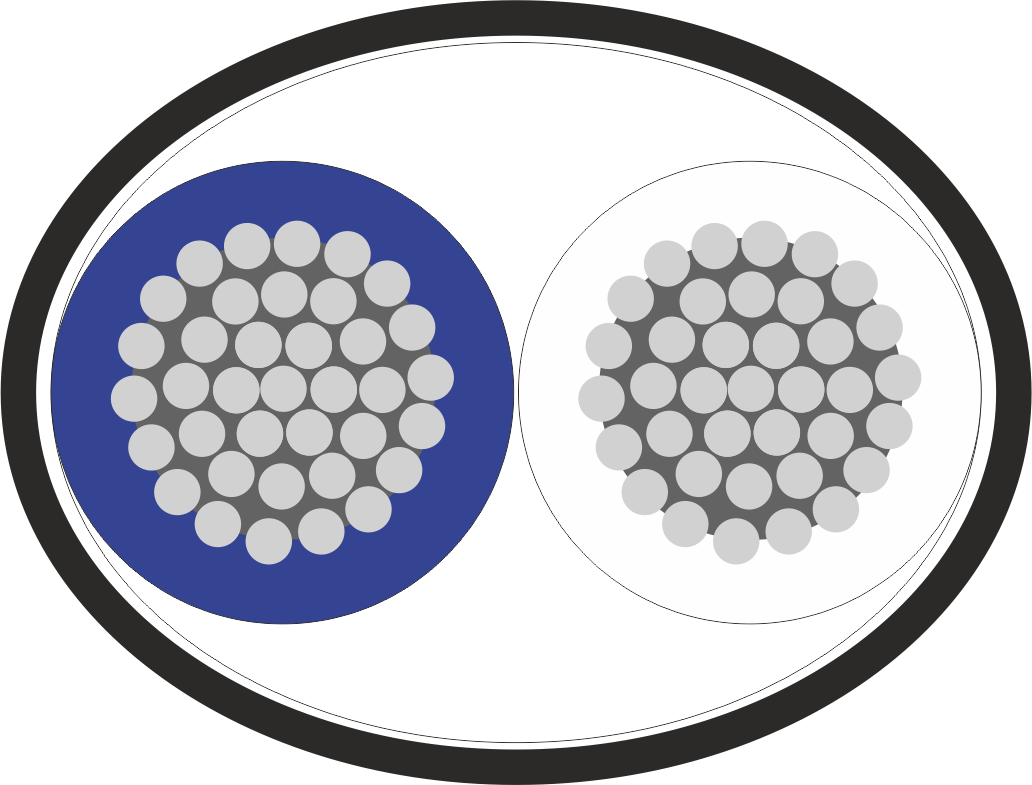

2. Power Pair Cable

  • Size : 20 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 32 AWG / 0.20 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Nominal Outer Diameter : 2.9 mm / 0.117 in.
  • Min. Bending Radius : 29 mm / 1.17 in.
  • Nominal weight : 17 Kg/Km
  • Max.Conductor DC Resistance : 9.1 Ω/1000ft.
  • Size : 24 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 36 AWG / 0.127 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Nominal Outer Diameter : 2.2 mm / 0.087 in.
  • Min. Bending Radius : 22 mm / 0.87 in.
  • Nominal weight : 9 Kg/Km
  • Max.Conductor DC Resistance : 23.6 Ω/1000ft.

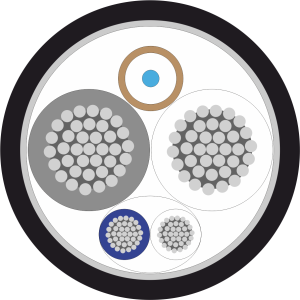

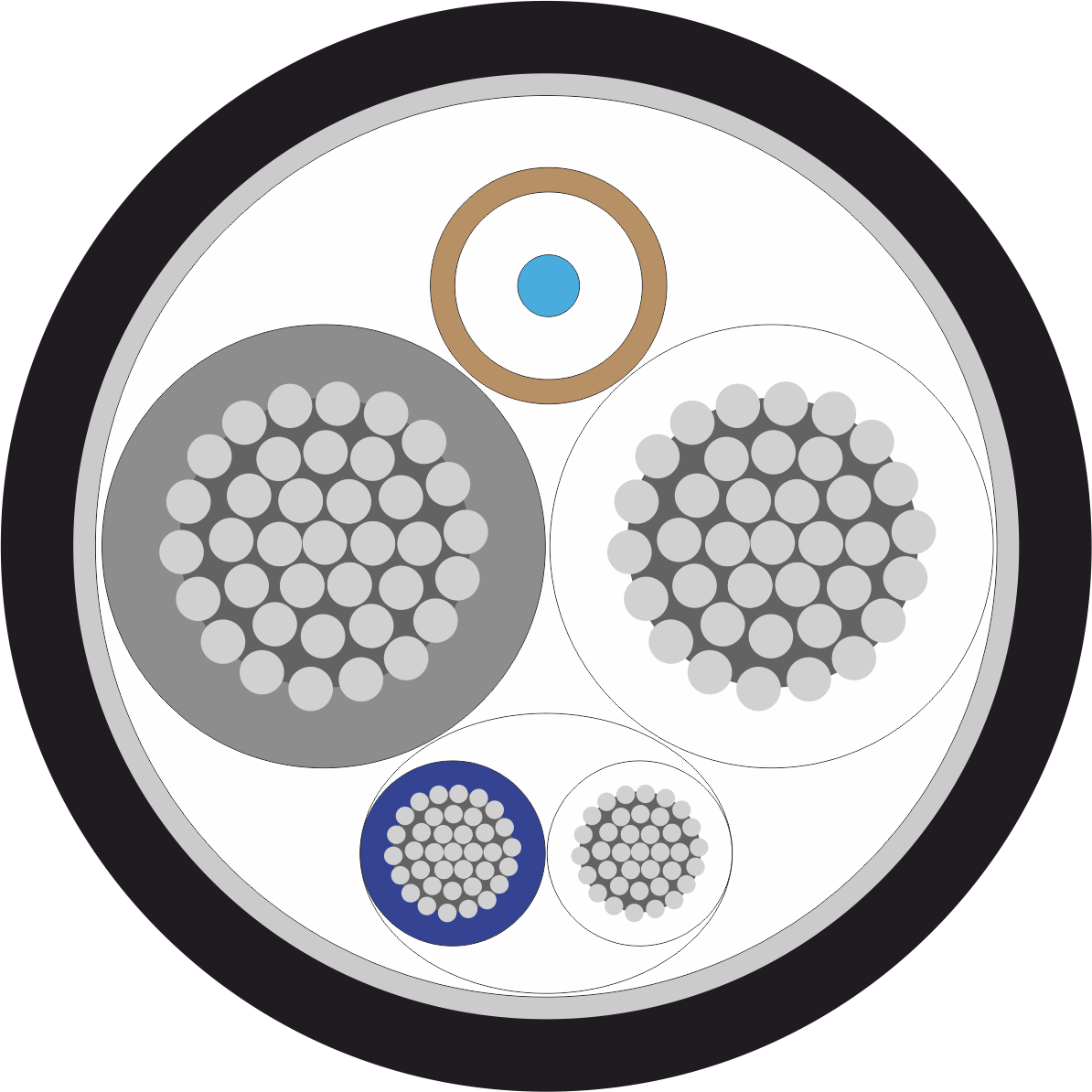

3. Power & Data Cable with Fiber Optic Cable

  • Size : 16 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 29 AWG / 0.286 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Data Pair Cable Size : 28 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 40 AWG / 0.08 mm.
  • Insulation Thickness : 0.14 mm (Data Pair)
  • Fiber : 1 Single Mode, 900 micron
  • Nominal Outer Diameter : 3.8 mm / 0.148 in.
  • Min. Bending Radius : 38 mm / 1.48 in.
  • Nominal weight : 36 Kg/Km
  • Max.Conductor DC Resistance : 4.5 Ω/1000ft.
  • Size : 20 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 32 AWG / 0.20 mm.
  • Insulation Thickness : 0.14 mm (Power Pair)
  • Data Pair Cable Size : 28 AWG
    No. of strands : 19 Nos.
    Strand Diameter : 40 AWG / 0.08 mm.
  • Insulation Thickness : 0.14 mm (Data Pair)
  • Fiber : 1 Single Mode, 900 micron
  • Nominal Outer Diameter : 3.2 mm / 0.127 in.
  • Min. Bending Radius : 32 mm / 1.27 in.
  • Nominal weight : 21 Kg/Km
  • Max.Conductor DC Resistance : 9.1 Ω/1000ft.

Optional

Aluminium Alloy Class 5 Non-greasy, flexible conductors available in place of copper conductors to reduce weight.

** We have obtained various approvals, accreditations and certification - some of which may not be relevant to this catalog.
